MAX1685EEE+
Manufacturer:
Analog Devices / Maxim Integrated
Mfr.Part #:
MAX1685EEE+
Datasheet:
Description:

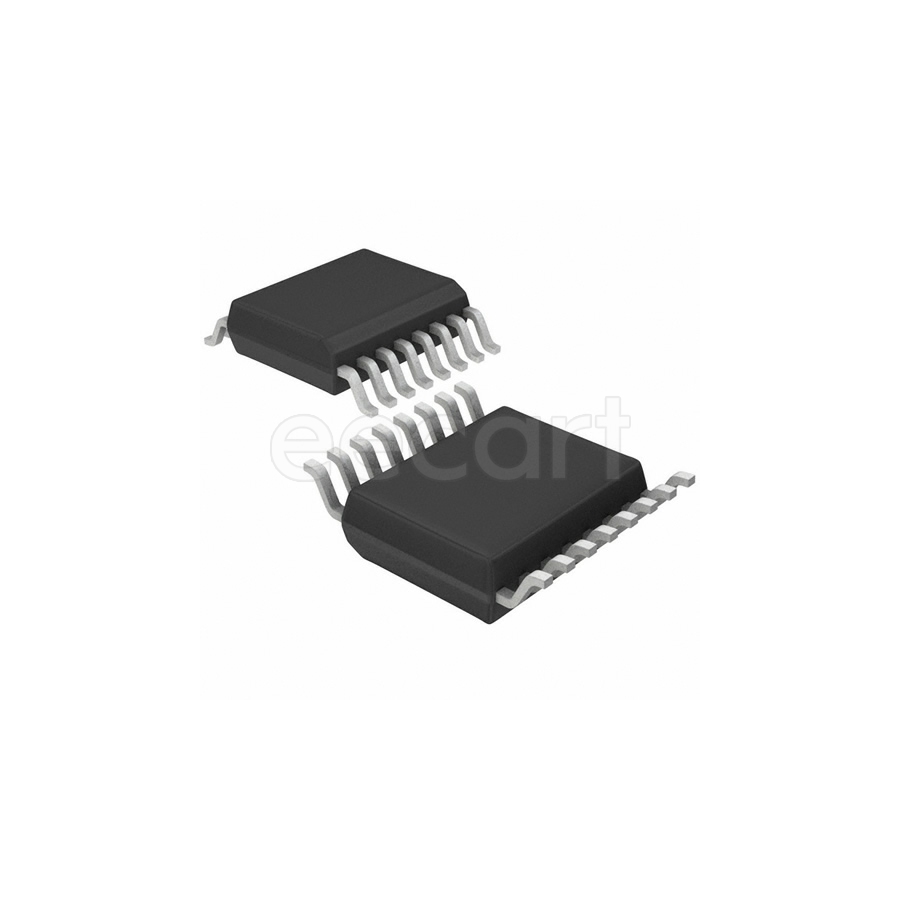

Voltage Regulators - Switching QSOP-16 SMD/SMT Buck Adjustable, Fixed 14 V
| Parameter | Value |
|---|---|
| Length | 4.98 mm |
| Width | 3.99 mm |
| Max Operating Temperature | 85 °C |
| Min Operating Temperature | -40 °C |
| Number of Pins | 16 |
| Height | 1.55 mm |
| Radiation Hardening | No |
| REACH SVHC | No SVHC |
| Frequency | 680 kHz |
| Min Input Voltage | 2.7 V |
| Output Current | 1 A |
| Output Voltage | 14 V |
| Output Type | Adjustable, Fixed |
| Synchronous Rectifier | Yes |
| Switching Frequency | 600 kHz |
| Max Input Voltage | 14 V |
| Number of Outputs | 1 |
| Output Power | 667 mW |
| Efficiency | 96 % |
| Min Output Voltage | 1.25 V |
| Max Output Voltage | 14 V |
| RoHS | Compliant |
| Packaging | Tube |
| Topology | Buck |
| Function | Step-Down |
Stock: 197
Distributors
pcbx
pcbxUnit Price$7.67214
Ext.Price$7.67214
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $7.67214 | $7.67214 |
| 10 | $5.61945 | $56.19450 |
| 25 | $5.46299 | $136.57475 |
| 50 | $5.31089 | $265.54450 |
| 100 | $5.16292 | $516.29200 |
| 300 | $4.95525 | $1486.57500 |
| 500 | $4.75597 | $2377.98500 |
| 1000 | $4.56874 | $4568.74000 |
